At Standard Cutting Solutions, we know that an end mill’s lifespan depends on factors like application, material compatibility, and coating—and we’re here to help you get the most out of every tool. Premature wear and tool failure aren’t just frustrating—they disrupt your workflow, ruin finishes, and waste valuable time and material. Knowing what these tools go through is beneficial in diagnosing problems keeping production rolling.

In the inaugural SCS blog series, we will tackle seven common problems and offer solutions to get the most out of your tools.

Blog Post 1.3

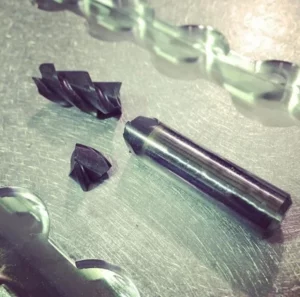

Breaking Tools? Here’s What Might Be Going Wrong

Tool breakage is one of those issues that can stop a job cold—and usually at the worst possible time. Just like edge chipping, breakage often comes down to running too aggressively. High feed rates and excessive depths of cut can push your tool past its limits. But there are a few other usual suspects worth checking, too.

• What causes it?
  Extreme tool overhang is a big one—when your tool is hanging too far out of the holder, it’s more prone to deflection and snap. Chip packing is another major culprit. If chips aren’t clearing properly, they build up around the flutes and increase pressure until something gives. And don’t overlook tool wear—if your end mill is already dull or fatigued, it won’t take much to break it.



• Here’s how to fix it.
  Start by backing off your feed rate and cutting depths. If your tool is breaking, there’s a good chance your paths are too aggressive for the tool geometry or setup. Shortening tool overhang can help big time—either by gripping the shank deeper or switching to a shorter tool altogether.



• For chip packing, you’ve got a few solid options. Adjust your speeds and feeds to improve chip evacuation, and bump up your coolant or air pressure to flush chips out more effectively. Sometimes it’s as simple as switching to a tool with fewer flutes and deeper valleys, which naturally clears chips better—especially in softer or gummy materials.



• And finally, don’t wait too long to regrind. Running a tool past its prime might seem efficient at the time, but worn tools are much more likely to fail mid-cut. Staying ahead of wear is a smart, cost-effective way to prevent breakage.





Need Help?

Remember, no matter how seasoned a machinist you are, even the best can hit a rough patch. The key is identifying the problem, understanding what’s causing it, and applying the right fix. At Standard Cutting Solutions, we’re passionate about partnering with you to solve these problems with American-made tools, expert advice, and personalized service. Reach out anytime!



























SCS President Richard Thiele performing inspection and quality control













References

Harvey Performance Company. (2022, February 4.). End mill troubleshooting guide. Harvey Performance. https://www.harveyperformance.com/in-the-loupe/end-mill-troubleshooting-guide/
